Bawul ɗin Ƙofar Ƙofar Ƙarfafawa

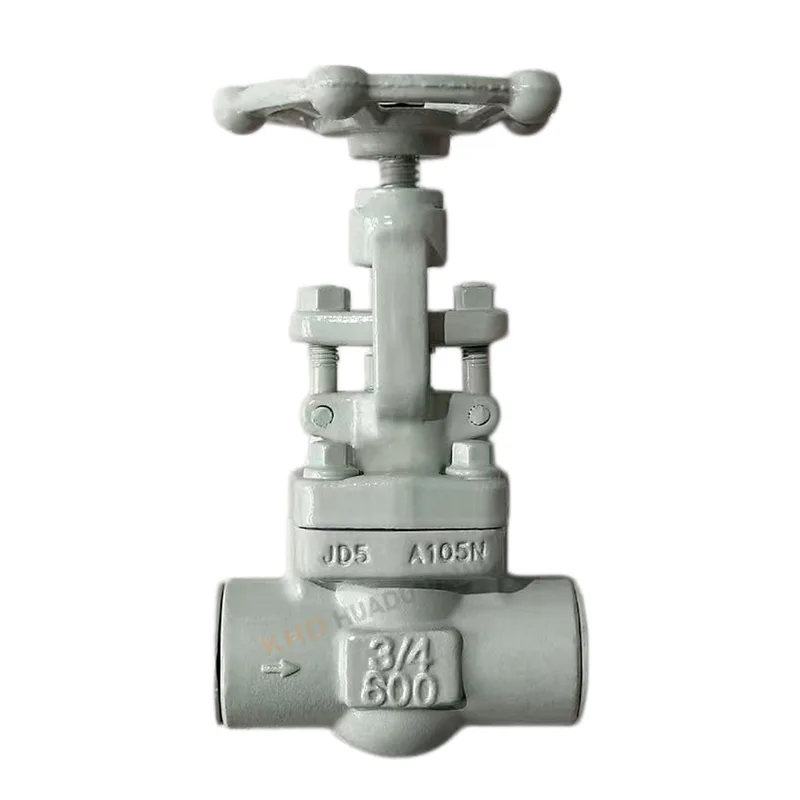

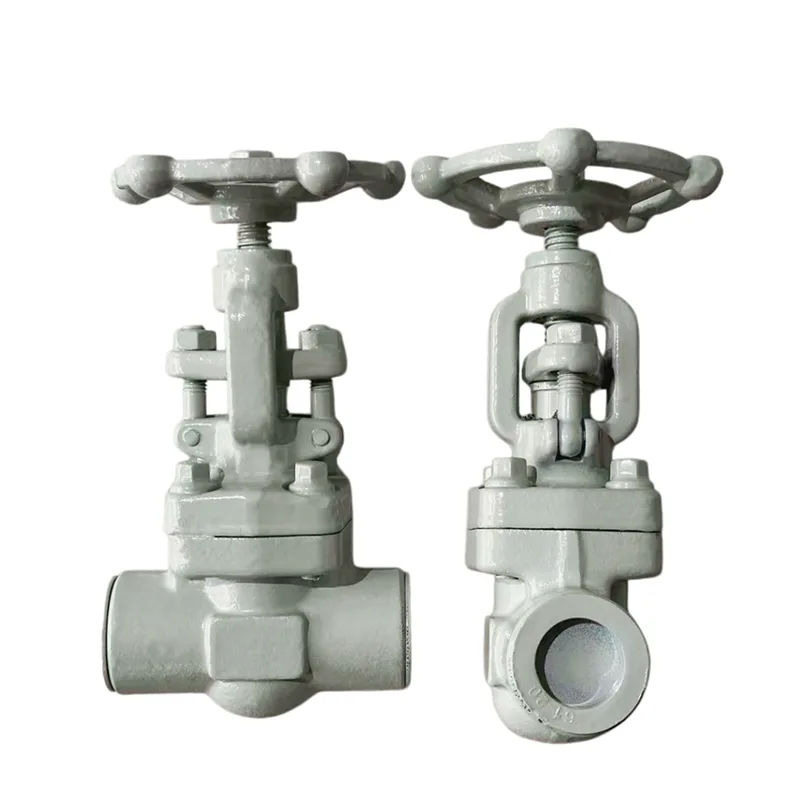

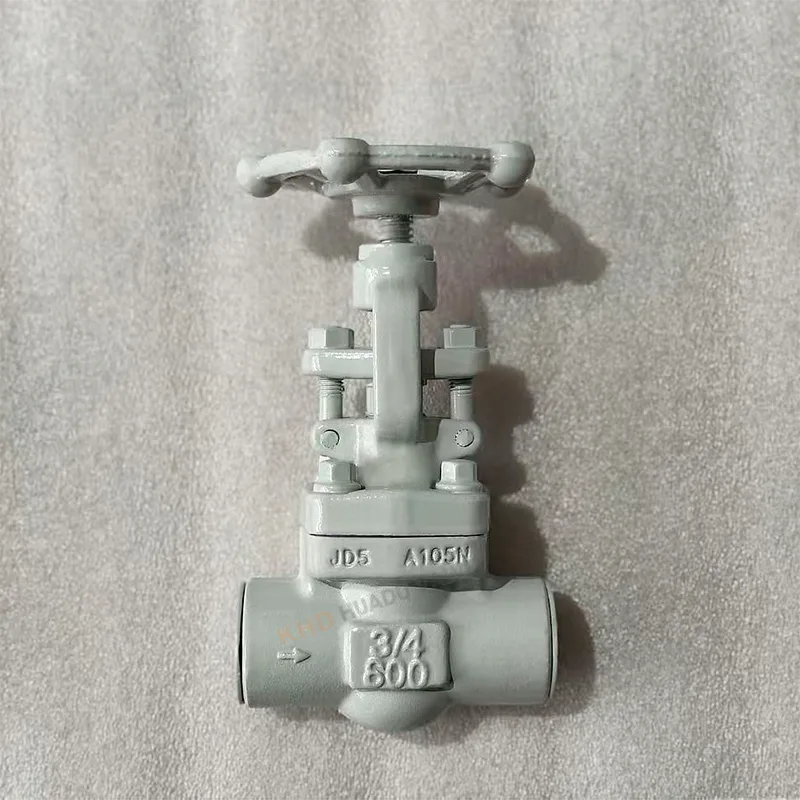

Ƙofar ƙirƙira mai welded soket bawul ɗin masana'antu ne mai matsananciyar matsin lamba wanda aka ƙera don kashe bututun da sarrafa kwarara. Kerarre ta Huadu Valve Group, shi yana amfani da A105N ƙirƙira carbon karfe da kuma dace da Class 600 aiki yanayi.It ne yadu amfani a cikin man fetur, sinadaran, iko, da kuma high-matsa lamba tururi tsarin inda aminci da sealing yi ne muhimmi.The soket-welded ƙirƙira ƙofar bawul tabbatar da barga aiki da kuma dogon sabis rayuwa a bukatar masana'antu yanayi.

Raw Material & Fa'idodin Tsari

Jikin Karfe mai inganci

Bawul ɗin ƙofa mai welded na jabu an yi shi ne daga ƙarfen ƙarfe na ƙarfe na A105N, yana tabbatar da:

Babban ƙarfi da yawa

Kyakkyawan juriya mai tasiri

Babu lahani na simintin gyaran kafa kamar pores ko ramukan yashi

Matsakaicin Duban Kayayyaki

Ana gwada kowane nau'in albarkatun ƙasa ta amfani da bincike na gani don tabbatar da cewa:

Daidaitaccen tsarin sinadaran

Babu kayan sake fa'ida ko mara inganci

Barga na inji yi

Fa'idodin Haɗin Socket-Weld

Nau'in haɗin ƙofar bawul ɗin da aka yi da soket yana samar da:

Ƙarfin aikin rufewa

Mafi kyawun juriya mai ƙarfi fiye da flanges

Rage haɗarin zubewa a cikin mahimmin tsari

Ƙididdiga na Fasaha

Daidaitaccen Ma'auni

Girman: DN15-DN50 (hannu na yau da kullun)

Matsakaicin Matsi: Class 300 / Class 600

Abu: A105N ƙirƙira carbon karfe

Nau'in: Bawul ɗin ƙirƙira mai welded soket

Yanayin Zazzabi: -29°C zuwa 570°C

Tsarin Masana'antu

Ana samar da bawul ɗin ƙirƙira ta hanyar:

Integral mutu ƙirƙira

Maganin zafi (tsarin daidaitawa)

CNC machining daidaici

Abubuwan Aiki

Matsakaicin matakin rufe daidaiton saman

Ayyukan rufewar sifili

Aiki mai laushi ba tare da cunkoso ba

Ya dace da tsarin tururi mai zafi mai zafi

Yankunan aikace-aikace

Masana'antar Oil & Gas

Ana amfani da bawul ɗin ƙirƙira na ƙirjin kofa a cikin:

Bututun matatun mai

Tsarin watsa mai

Kayan aikin iskar gas

Masana'antar sinadarai

Manyan bututun sinadarai

Tsarukan sarrafa ruwa mai lalacewa

Reactor mashigai/kanti tsarin

Masana'antar Wutar Lantarki

Bututun tururi

Tsarin wutar lantarki na thermal

Condensate bututu

Amfani da Masana'antu Gabaɗaya

Ƙananan bututun diamita masu ƙarfi

Tsarin keɓe kayan aiki

Aikace-aikacen rufewa na aminci

Babban halayen

FAQ

Menene haɗin soket-weld?

Haɗin soket-weld hanya ce ta haɗa bututu inda ake shigar da bututun a cikin kwas ɗin da aka ajiye sannan a yi masa walda a waje. An fi amfani dashi a cikin matsananciyar matsa lamba, ƙananan tsarin diamita.

A cikin nau'in bawul ɗin ƙirƙira ta soket, ana saka bututun a cikin kwas ɗin ƙarshen bawul kuma a yi masa walda don samar da haɗin gwiwa mai ƙarfi, mai jurewa.

Mabuɗin abubuwan haɗin soket-weld

Babban ƙarfi da juriya mai ƙarfi

Kyakkyawan aikin rufewa

Ya dace da ƙananan bututun DN15-DN50

Rage haɗarin ɗigowa idan aka kwatanta da haɗin haɗin zaren

Na kowa a tsarin mai, gas, da tururi

Ya kamata a tarwatsa bawul ɗin soket-weld kafin waldawa?

Ee, kwata-kwata. Kafin shigar da bawul ɗin ƙofa na jabu, bawul ɗin bai kamata a haɗa wani yanki ba yayin walda.

Ayyukan shigarwa daidai:

Cire abubuwan ciki idan zai yiwu (ko tabbatar da bawul ɗin yana buɗewa)

Saka bututu gaba daya a cikin soket

Kula da ƙaramin tazarar faɗaɗa (~ 1.5-2 mm)

Yi waldi kawai akan haɗin gwiwa na waje

Bada izinin sanyaya kafin aiki da bawul

Muhimman bayanai:

Ka guji zazzage jikin bawul ɗin

Hana welding slag daga shiga cikin kogon bawul

Tabbatar daidai jeri kafin walda

Walda mara kyau na iya lalata saman rufewa da rage rayuwar bawul.

Menene bambanci tsakanin OS&Y da bolted bonnet?

Waɗannan su ne nau'ikan ƙira guda biyu daban-daban waɗanda aka yi amfani da su a cikin bawul ɗin ƙofar.

OS&Y (Waje Screw & Yoke)

Zaren kara yana wajen jikin bawul

Motsin tushe mai bayyane yana nuna matsayi na buɗe/kusa

Sauƙaƙan kulawa da kulawa da aiki

Na kowa a cikin kariyar wuta da tsarin masana'antu

Bonnet

An haɗa Bonnet zuwa jikin bawul ta amfani da kusoshi

Zane na ciki (ba a bayyane a waje)

Karamin tsari

An yi amfani da shi sosai a aikace-aikacen masana'antu gabaɗaya

Sauƙaƙan kwatance:

OS&Y = ganuwa na waje + saka idanu mai sauƙin aiki

Bolted bonnet = m + tsari mai inganci

Ana iya amfani da duka nau'ikan biyu a cikin bawul ɗin ƙirƙira ƙofa-welded dangane da buƙatun aikin.
